Sunday, February 10, 2019

Tenryugawa Wooden Boat Symposium - 2

So my week here in Iida, Nagano has wrapped up. I spent almost five days working with the boatbuilders and then gave the keynote address at the symposium. It all went extremely well and I can say I made many new friends. It was also fascinating to take part in the construction of a river boat and I scrambled to take notes and measurements. The boatbuilder uses no drawings; only patterns.

We managed to get two strakes around the boat in less than a week's time. Now they have just one strake to go and the hull is finished. There's no internal framing except for two horizontal beams installed across the hull at the gunwale. Later the outside of the hull gets fiberglassed and two metal frames are bolted inside the hull to allow the boats to be lifted out of the water with a crane at the end of the downriver trip. They are then trucked back to the starting point.

A look at the scarf joint used to join planks. Each strake, or run of the planking, is made up of three boards scarfed together.

In lieu of angle measurements and plank widths, we used this pattern which contains all that information. The plank widths are marked and we set the plank angles to the pattern.

The boatbuilder here had an interesting process for cutting the mortises for the edge-nails. He was very fast so I wanted to document it. First he makes a relief cut marking the bottom of the mortise.

Then he makes a series of relief cuts marking the side of the mortise. Note the slight curve.

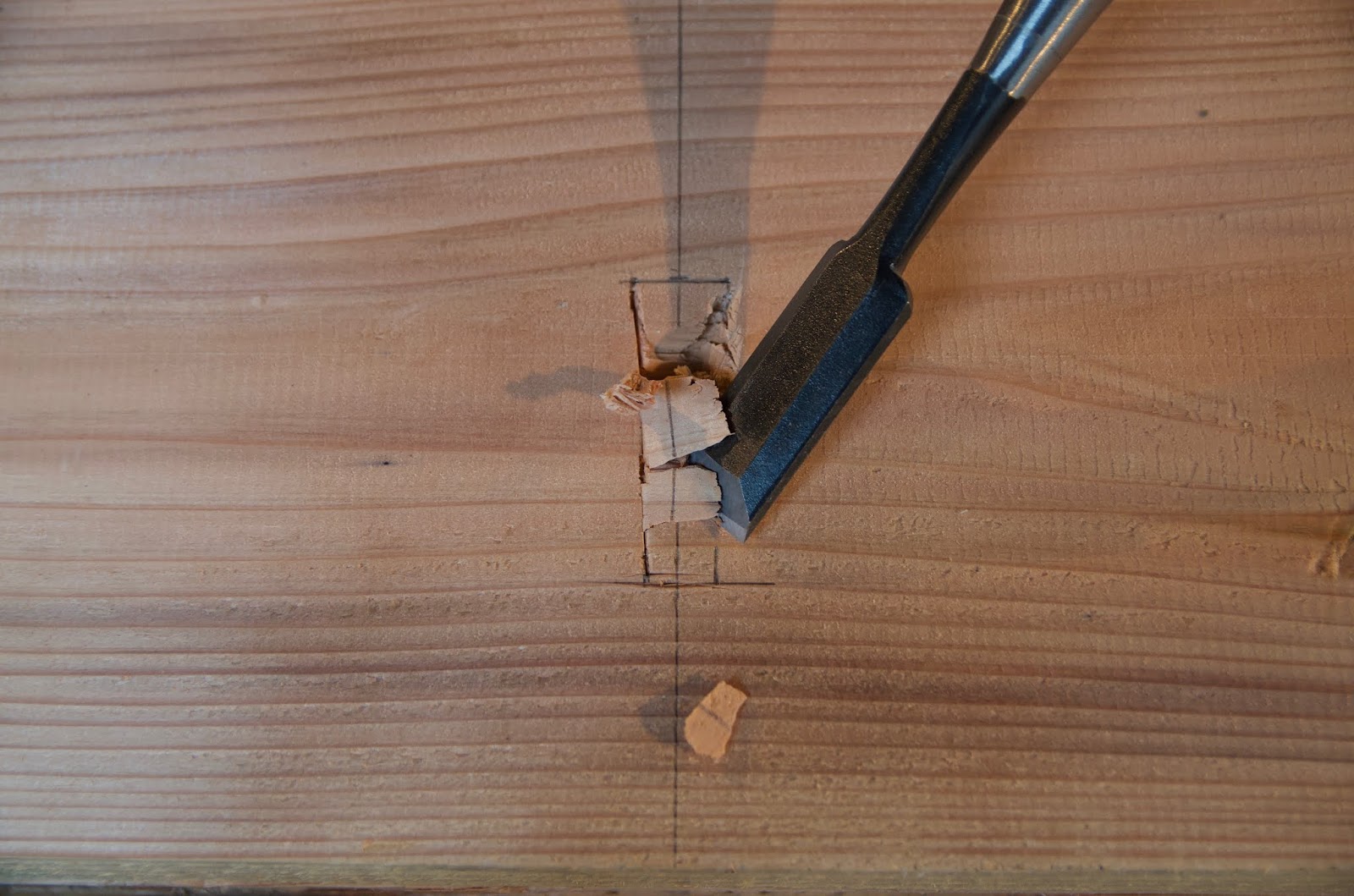

Then, angling the chisel steeply, he cuts the shape of the other side down to the bottom. The material breaks out up to the relief cuts on the other side. He free hands the shape of the right side, though I made a matching set of relief cuts to try and get a symmetrical mortise.

Then he cuts vertically down the left side. The chisel is angled steeply back, away from the camera, and rocked slightly as its struck. By the time the chisel reaches the bottom of the mortise the upper corner of the edge should have plunged to the full depth. The chisel is 8 bu wide (about 7/8") and laid over at 45 degrees it will have cut the proper depth.

The last pass is vertically down the right side, chisel still angled away from the camera.

The finished mortise. When we plunge the tsubanomi from the plank edge to the mortise to make the pilot hole it breaks out the waste in the center at the base of the mortise. We then use a small chisel to clean out the mortise right before nailing. This method is very quick.

My guest house for the week, a restored and converted 200-year old home. The young couple who run the place actually didn't buy it, but rent it for a very small amount. Some people simply can't part with old family homes but will rent them for very little money, knowing that an empty house can quickly succumb to decay. Please see their website: yamairo-gh.com.



The couple who run the guest house are part of a small, but growing phenomenon of young people heading back to the countryside and finding creative ways of making a living. In this case the woman was from Iida, but spent four years working for an architectural firm in Tokyo. After spending a year in Berlin with her husband they were inspired by the guest houses they say there and decided to try and replicate the concept in her home town.

The jackets are for customers to wear while lounging in the common spaces. It is a traditional house, therefore no central heating and no insulation. We had small, portable kerosene heaters, and plenty of quilts on the beds.



The inn has just a few private rooms and mostly dormitory-style accommodations, with each person getting a fully enclosed bunk-type bed. Its a bit like Japan's famous capsule hotels. The rates are less than thirty dollars a night and breakfast is about four dollars. They also do dinners.



Next door is the massive home of a former sake merchant. In the foreground is the kura, or fireproof storehouse. Iida has the biggest kura I have ever seen in Japan.

The day before the symposium we had a holiday so staff could set up for the conference. I took the day and drove two hours west to see my teacher from 2017, Mr. Seichi Nasu. He's finishing up a small boat he's built on speculation, and had another fishing boat he was repairing. I wrote a series of blog posts about that project beginning with this one.

At the symposium Yazawa san, the master boatbuilder, demonstrated his rhythmic nailing technique on the conference stage. I couldn't seem to upload the video to this blog but look for it at my Instagram page.

It was nice to see a brand-new set of nail chisels and a fresh box of new nails. I'd feared all the sources for these materials had all but dried up in Japan, but the folks here found a blacksmith in Sanjyo City, a very famous tool-making town in Niigata Prefecture, that has begun making boat nails and these specialized tools. The nails are about a dollar apiece, and the chisels are over two hundred dollars. They are all hand-made, however.

We had a tour bus visit the shop my last day.

A look at the bow with one plank remaining.

People here have said over and over how the local boatbuilding traditions came from the Kiso and Nagara River valleys to the west, where I worked in 2017. These boats show a definite resemblance to the boat I built there.

The Tenryu river flows due south out of the mountains to the coast and was a vital avenue for trade to and from the interior. The boats would sail back upriver with prevailing winds.


Tuesday, February 5, 2019

Tenryugawa Wooden Boat Symposium

I am back in Japan, albeit briefly, to give the keynote talk at Japan's first Wooden Boat Symposium, organized by the Tenryugawa Kudari, a white water tour boat company. I blogged about them before here. They build a new wooden tour boat most winters and I came a bit early to spend some time working with the boatbuilders.
One thing I've seen river boat builders do in Japan is hold their boats on the building stocks with weights. Normally most boatbuilders use props braced to the overhead beams of their shops. Here the backbone of the boat has been weighted with large concrete blocks.

And here I am doing what I do best: record all the things that are unrecorded. Here I am tracing the boatbuilder's patterns, this one is for the bow transom (visible in the previous photo). Like all river boat builders I have met, the builder here does not use drawings. He relies on patterns and memorized dimensions.

The first day I was there Yazawa san, the chief boatbuilder, performed a keel-laying ceremony and offered prayers to the builder's safety. A visiting elementary school class looks on as he pours sake on the bow.

With the garboard on we scribed the next strake by wrapping it around the hull and tracing the top edge of the garboard. Here the first plank - garboard in English - is called the motogi, a term I have never heard before.

A look at the stern transom, made of two pieces peaked in the middle. This shape is not uncommon in Japanese river boats.

Next to us are stored some of the company's fleet of 38-foot tour boats. The outsides are fiberglassed, and the company has been doing that for forty years.

Tagiri san, Yazawa san's master, stopped by today. He is 75 and he told me he built about 200 of these boats. He watched us for a long time and then, seeing the two apprentices struggling, he jumped in and began to lead them.

A view of the stern with the two strakes wrapped around for scribing.

A view from the other end after they had been fastened.

The shop was swamped by the media today. Here five reporters interview Yazawa san.

A view of the planking. You can see the mortises for the edge-nailing (these boats have no frames) and the dogs used to clamp the planks together. The construction is very reminiscent (though not exactly the same) as the cormorant fishing boat I helped build in 2017 in Gifu. That was on the Nagara River, about two hours from here, but everyone here says the boatbuilding traditions originated in Gifu. I started blogging about that project here.

I am also working on a project with The Apprenticeshop of Rockland, Maine to create an exchange program in Japan for their students. The Tenryugawa Kudari has agreed to work with us and I hope in the future we can have the Apprenticeshop's students working alongside the Japanese boatbuilders.

Finally this tool, a simple device that is expandable and used for measuring inside dimensions. The name is bakabou, which means literally "stupid pole." The "stupid" part is a reference to its use as a jig, obviating the need to think or calculate. I met a boatbuilder in Japan last fall who referred to all his patterns as baka.
